Design a Chat System

Step 1 - Understand the problem and establish design scope #

Requirements:

• Both 1-on-1 and group chat
• Mobile + web
• 50 million DAU
• Group max: 100 members
• Features: 1-on-1 chat, group chat, online presence indicator
• Text only, max 100,000 chars per message
• No end-to-end encryption (discuss if time allows)
• Chat history stored forever
• Multiple device support (same account logged into multiple devices)

Step 2 - Propose high-level design and get buy-in #

Communication protocols #

Sender side: HTTP with keep-alive (persistent connections, fewer TCP handshakes)

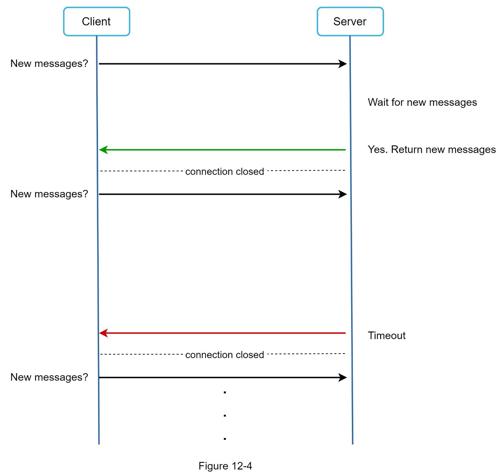

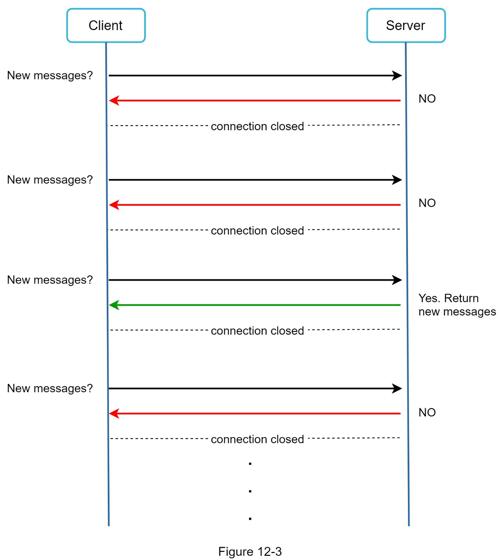

Receiver side — three approaches:

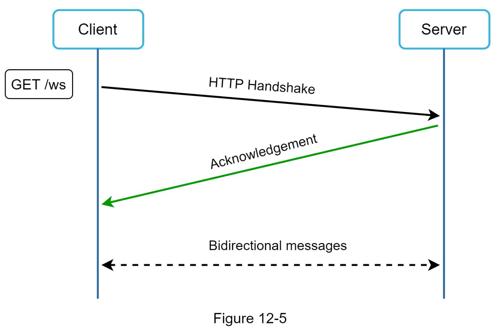

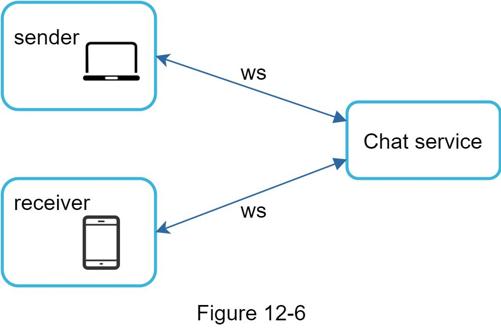

Final choice: WebSocket for both sending and receiving — simplifies design. HTTP used for everything else (signup, login, profile).

High-level architecture #

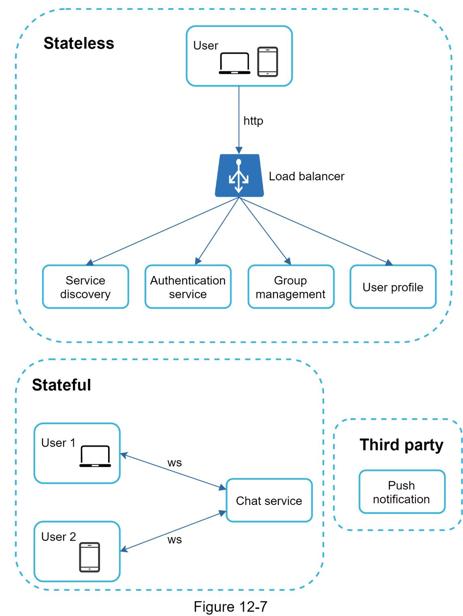

Three categories:

1. Stateless services (behind load balancer): Login, signup, user profile. Can be monolithic or microservices. Service discovery recommends the best chat server for a client (based on geo location, server capacity).

2. Stateful service — Chat service: Each client maintains a persistent WebSocket connection to a chat server. Client stays connected to same server while available.

3. Third-party integration: Push notifications for offline messages.

Scalability note #

1M concurrent users × 10KB per connection ≈ 10GB memory — could fit on one server in theory, but single point of failure is unacceptable.

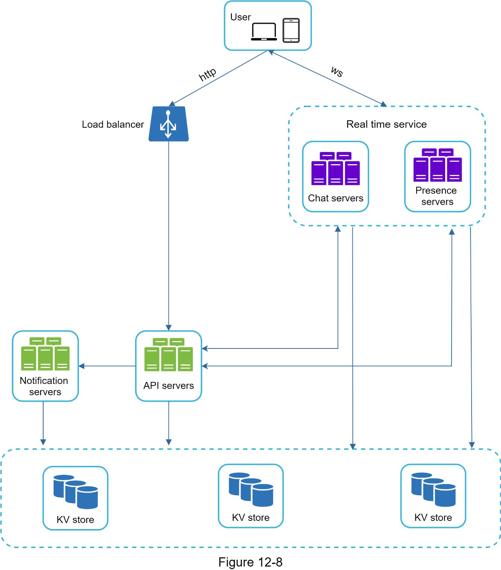

Adjusted high-level design #

• Chat servers: Message sending/receiving via WebSocket
• Presence servers: Online/offline status
• API servers: Login, signup, profile
• Notification servers: Push notifications
• Key-value store: Chat history persistence

Storage #

Generic data (user profile, settings, friends list) → relational database with replication/sharding.

Chat history data — characteristics:

• Enormous volume: Facebook Messenger + WhatsApp process 60 billion messages/day
• Mostly recent chats accessed; old chat random access (search, mentions) must still work
• Read:write ratio ≈ 1:1 for 1-on-1 chat

Why key-value store for messages:

• Easy horizontal scaling
• Very low latency
• Relational DBs struggle with long-tail data; indexes grow large, random access expensive
• Proven: Facebook Messenger uses HBase, Discord uses Cassandra

Data models #

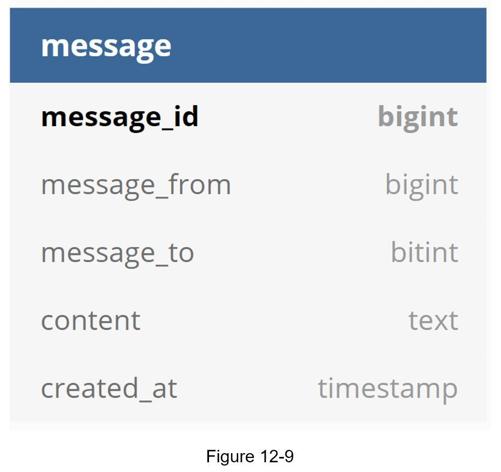

1-on-1 message table: Primary key = message_id (determines sequence; created_at insufficient — two messages can have same timestamp).

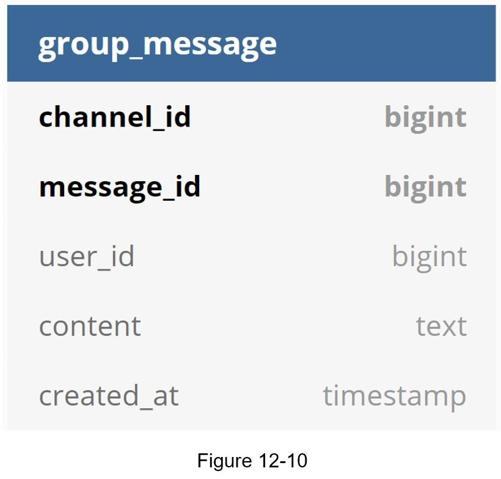

Group chat message table: Composite primary key = (channel_id, message_id). channel_id is partition key.

Message ID generation:

• Must be unique and sortable by time (newer = higher ID)
• Options: Snowflake (global 64-bit), or local sequence number generator (unique within a channel, easier to implement, sufficient for message ordering)

Step 3 - Design deep dive #

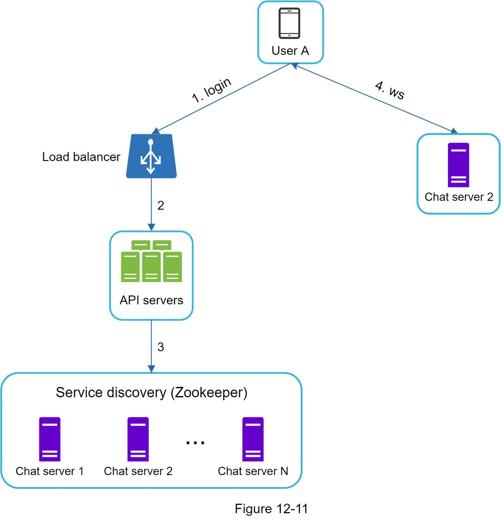

Service discovery #

Apache ZooKeeper registers available chat servers, picks the best one for a client.

1. User A logs in → 2. Load balancer → API servers → 3. Authenticate → service discovery picks best chat server → 4. User A connects via WebSocket

Message flows #

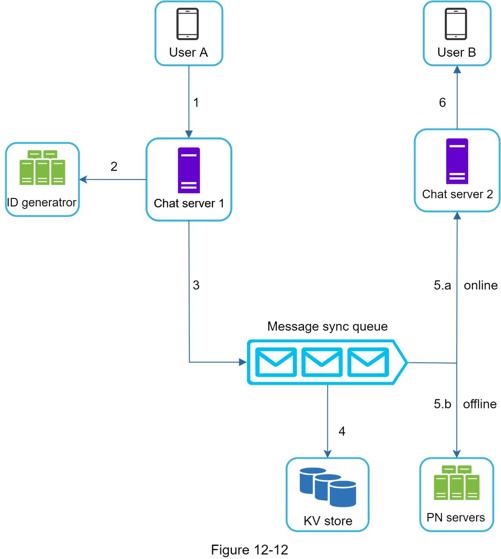

1-on-1 chat flow:

1. User A sends message to Chat server 1
2. Chat server 1 obtains message ID from ID generator
3. Message sent to message sync queue
4. Stored in KV store 5a. User B online → forwarded to Chat server 2 → delivered 5b. User B offline → push notification sent

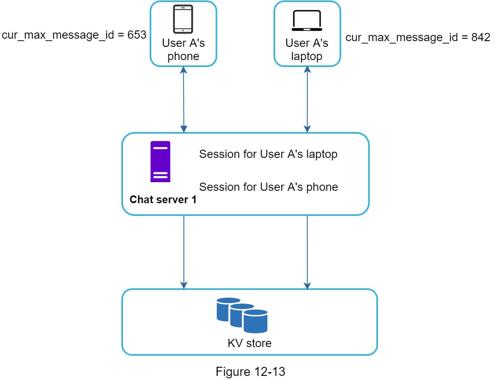

Multi-device sync:

Each device maintains cur_max_message_id. New messages: recipient_id == current_user_id AND message_id > cur_max_message_id. Each device syncs independently.

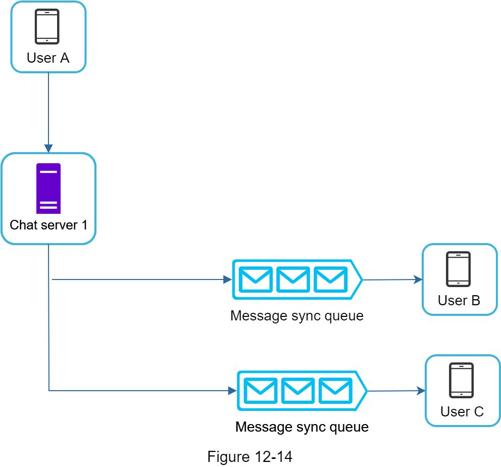

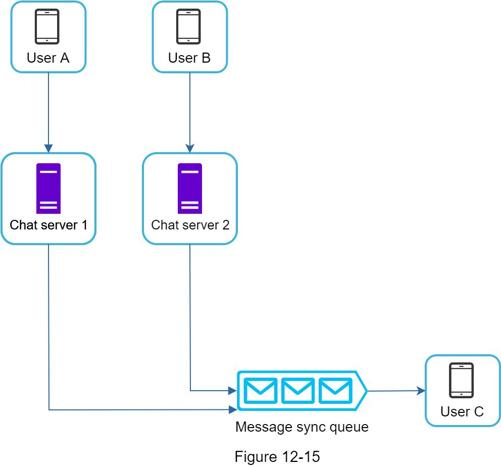

Small group chat flow:

Message from User A is copied to each group member's message sync queue (each recipient has an inbox). Good for small groups (WeChat caps at 500). For large groups, storing a copy per member is too expensive.

Online presence #

Login: WebSocket connected → status saved as "online" + last_active_at in KV store.

Logout: Status changed to "offline" in KV store.

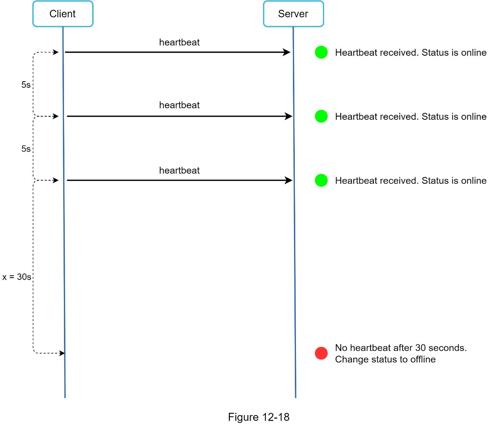

Disconnection — heartbeat mechanism: Client sends heartbeat every 5s. If no heartbeat for x seconds (e.g., 30s), mark offline. Avoids flickering from brief disconnections.

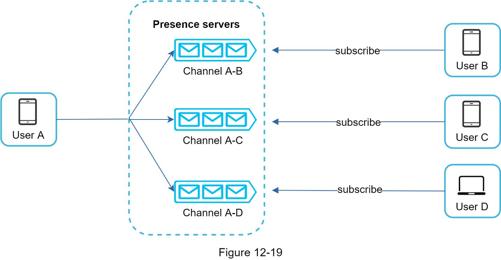

Online status fanout — pub/sub model: Each friend pair has a channel. Status change published to all friend channels. Friends subscribed. Works well for small groups (WeChat caps at 500). For large groups: fetch status on-demand (enter group, manual refresh).

Step 4 - Wrap up #

Additional talking points:

• Media files: Compression, cloud storage, thumbnails
• End-to-end encryption: Only sender and recipient can read messages (WhatsApp model)
• Client-side caching: Reduce data transfer
• Geo-distributed network: Cache user data near users for fast load times (Slack's Flannel)
• Error handling: Chat server failure → Zookeeper provides new server; message retry via queues
• Message resent mechanism: Retry + queueing

Reference materials [1] Erlang at Facebook [2] Messenger and WhatsApp process 60 billion messages/day [3] Long tail: https://en.wikipedia.org/wiki/Long_tail [4] Underlying Technology of Messages (Facebook) [5] How Discord Stores Billions of Messages [6] Announcing Snowflake (Twitter) [7] Apache ZooKeeper [8] WeChat backend evolution (Chinese) [9] WhatsApp end-to-end encryption [10] Flannel: Slack edge cache
